Anténa ATK-LOG ALP 5G MIMO 2x2 20 m kabel, konektor SMA, 698-3800 MHz

Výrobce

Kód

A7064_20

Dostupnost

Dostupnost na pobočkách

HLS

MOP

DIP

Vaše cena bez DPH

2 634 Kč

DPH

21%

Vaše cena s DPH

3 187 Kč

Záruka

24 Měsíce

Objednat

Porovnat Nastavit hlídacího psa Tisk

Podrobnosti o produktu

Podrobný popis

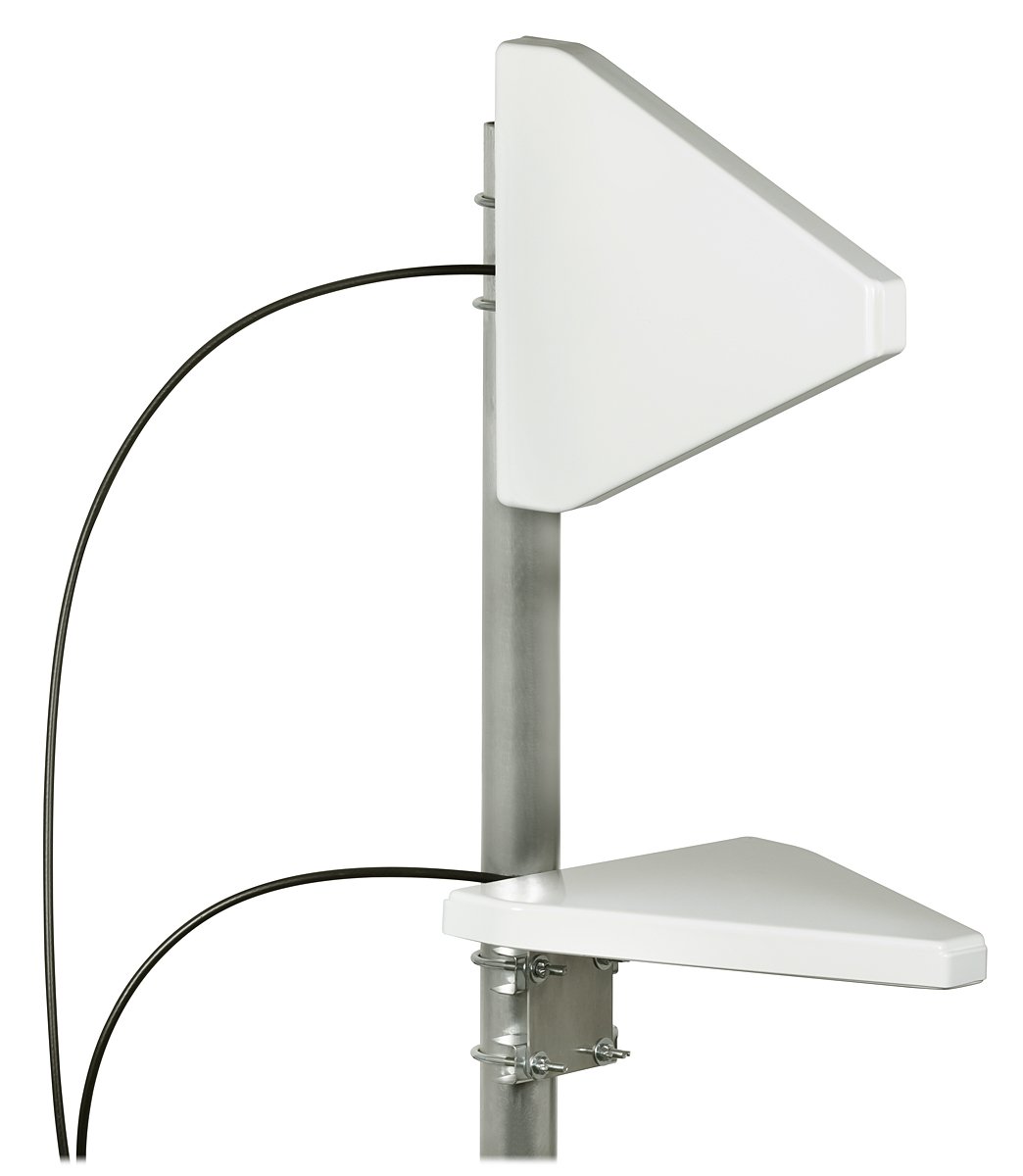

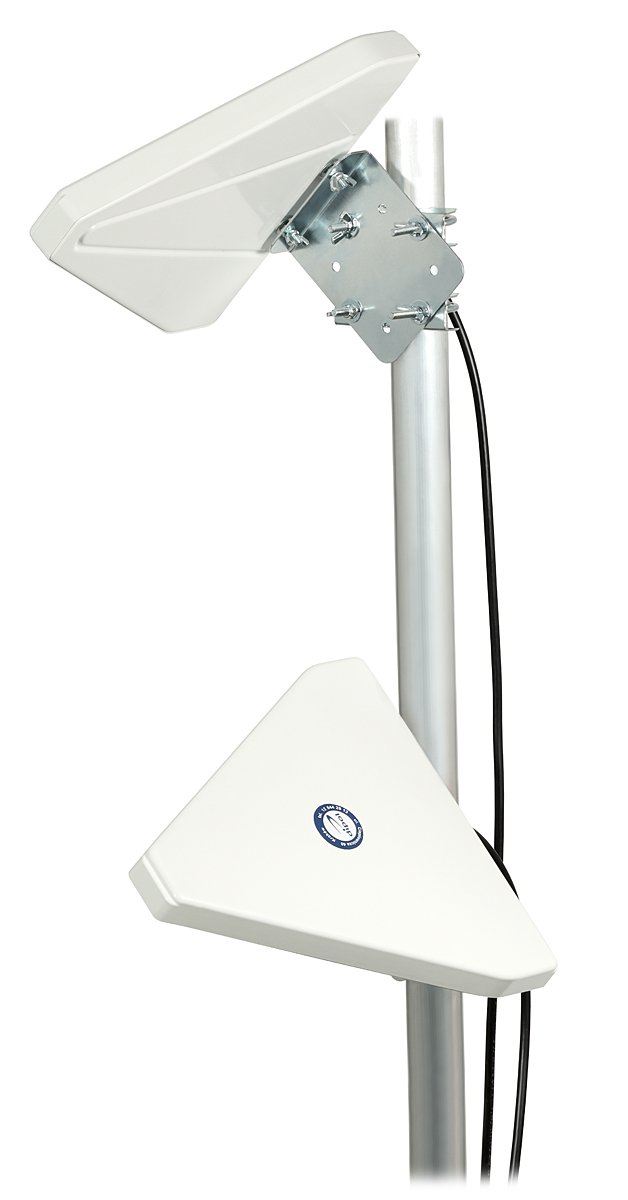

The set includes two identical antennas - one antenna should be mounted vertically, and the other horizontally. The distance between the antennas should be at least 37 cm.

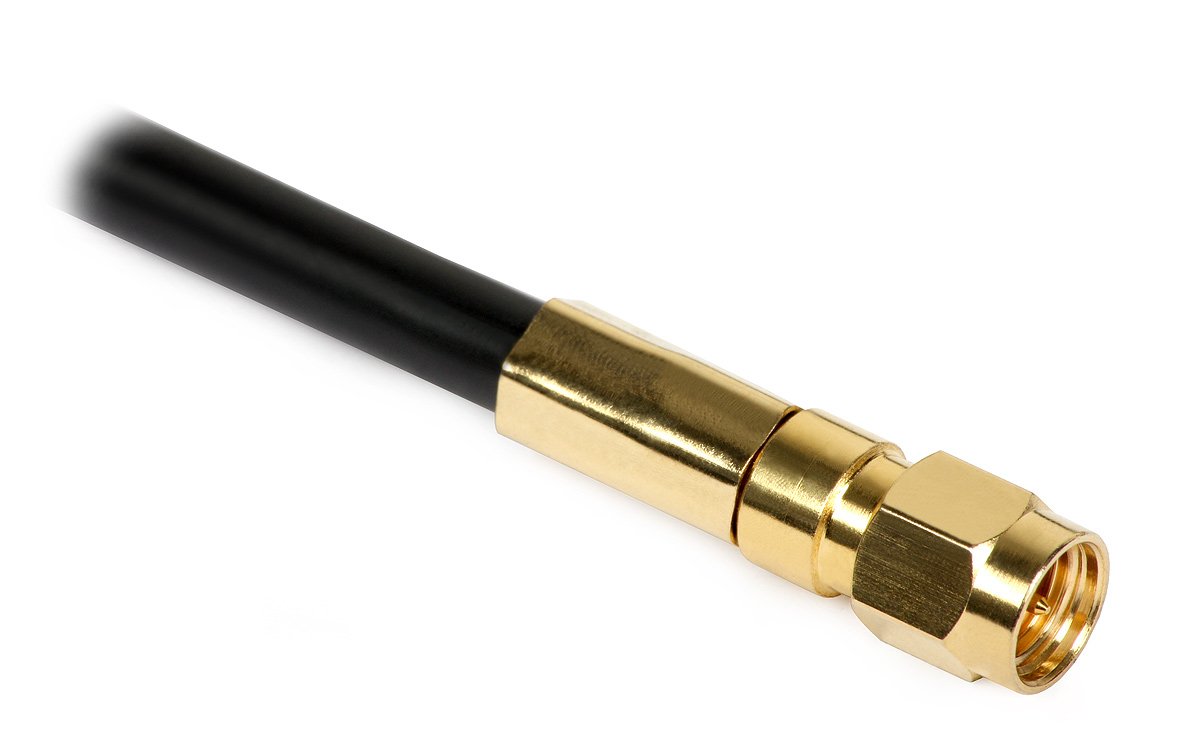

The ATK-LOG ALP 5G MIMO logarithmic antenna is designed for use in GSM/DCS/UMTS/HSDPA/LTE/5G telephony systems operating in the 698-3800 MHz band. It perfectly solves the common problem of no signal at the place of installation of the modem with a GSM/UMTS/LTE/5G card. In such a situation, it is usually enough to connect an antenna to the modem that allows for obtaining a sufficient signal. Additionally, the antenna has 2 cables 20 meters long, terminated with an SMA plug.

The antenna is designed to work with LTE/5G modems (equipped with two antenna connectors), telephones and GSM, DCS, 3G, LTE, 5G modems.

MIMO (Multiple Input, Multiple Output) – is a method for multiplying the capacity of a radio link using multiple transmitting and receiving antennas to exploit multipath propagation.

Key features:

band: 698-3800 MHz
gain: up to 9 dBi
20 m cable
SMA plug
VSWR: max. 1.83
MIMO technique
short for DC
x-cross polarization

The parameters of the antenna have been tested by the staff of the Department of Electronics at the AGH University of Science and Technology in Krakow.
