Optický nástěnný rozvaděč ULTIMODE TB-48B

   Wall-mounted fiber optic distribution box for indoor applications (IP65),
   For connecting up to 48 SC/FC or 96 LC connectors,
   The possibility of securing 12 splices,
   Two trays accommodating 48 fusion splices or 32 mechanical splices (ULTIMODE FAST-MS1 L5550),
   Place for two optical splitters,
   Key lockable door,
   Ease of installation, operation and maintenance.

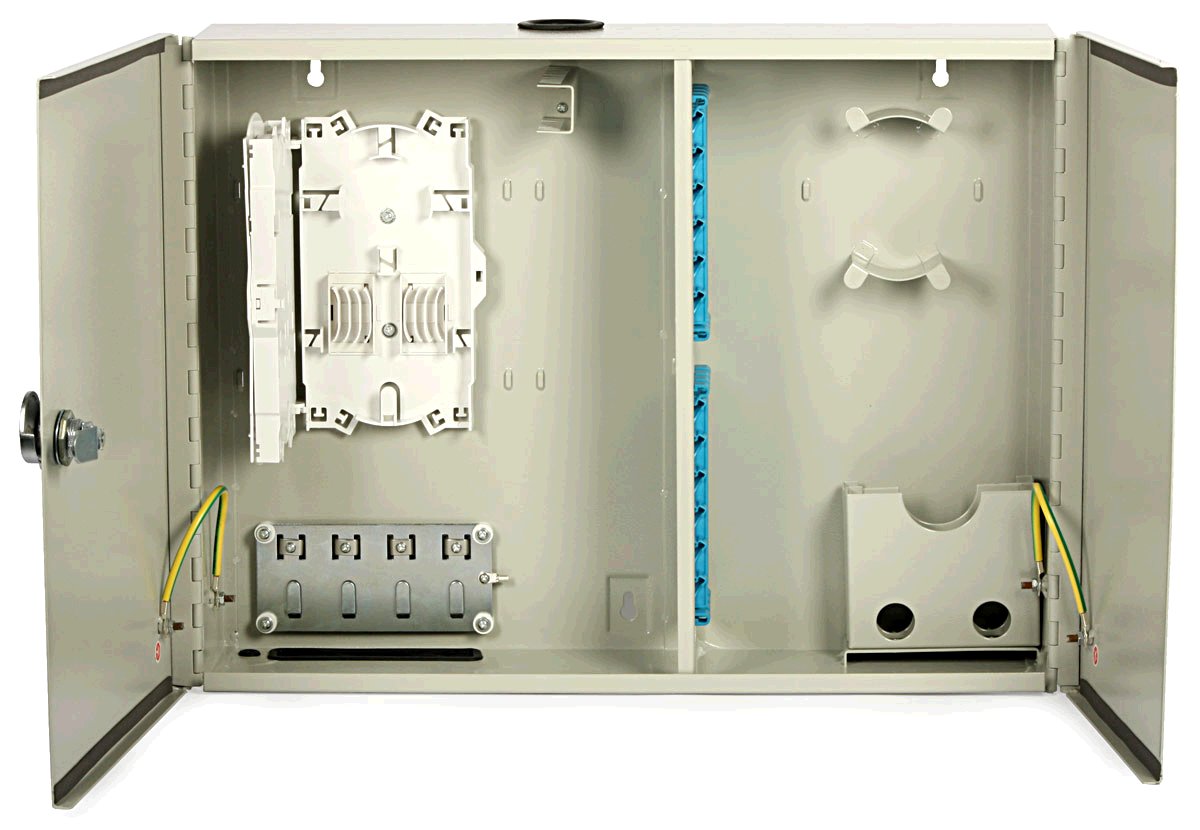

The wall-mounted fiber optic distribution frame ULTIMODE TB-48B allows for easy organization of fiber optic cables (up to 96 fibers, depending on the installed adapters.) The holes inside the box are suitable for installation of SC simplex adapters (connecting up to 48 fibers with SC or FC connectors, or up to 96 fibers with LC connectors).
The ULTIMODE distribution frame (box) allows for easy and quick installation of optical fibers. It also protects splices and splitters. In the box there are two splice trays (for up to 48 fusion splices or 32 mechanical splices ULTIMODE FAST-MS1 L5550) and the place for two optical splitters. The maximum diameter of the cable entering the box is 40 mm. The key lockable door protects the circuitry against unauthorized access.
The box is intended for wall mounting at the end of an optical line. It is used in internal fiber optic networks e.g. in apartment houses, office buildings, warehouses.
Adapters compatible with the ULTIMODE TB-48B box:

   SC simplex - L4011, L4211, L4222
   LC duplex - L4355, L4155
   FC simplex - L4233, L4333

Splitters compatible with the ULTIMODE TB-48B box:

   ULTIMODE SP-16B 1x16 L3616
   ULTIMODE SP-32B 1x32 L3632

The tray compatible with the ULTIMODE TB-48B box:

   Splice tray ULTIMODE P-6 L5506
