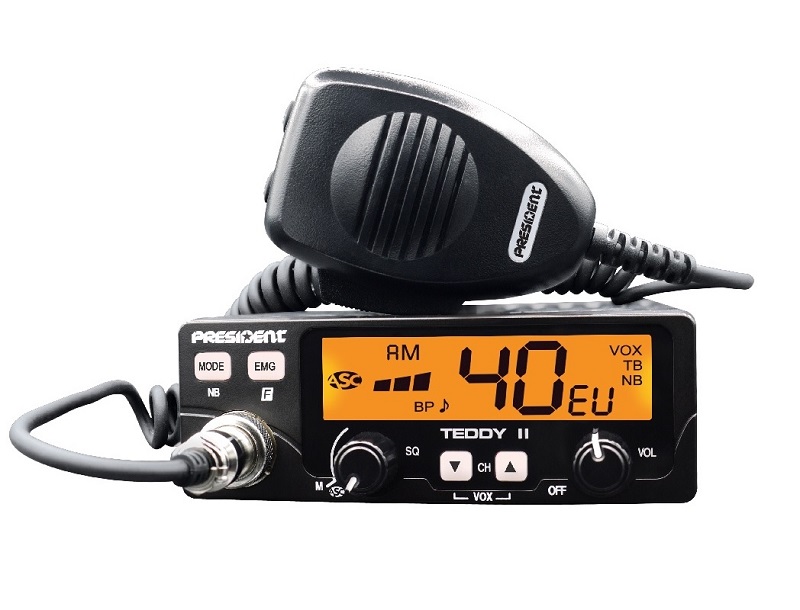

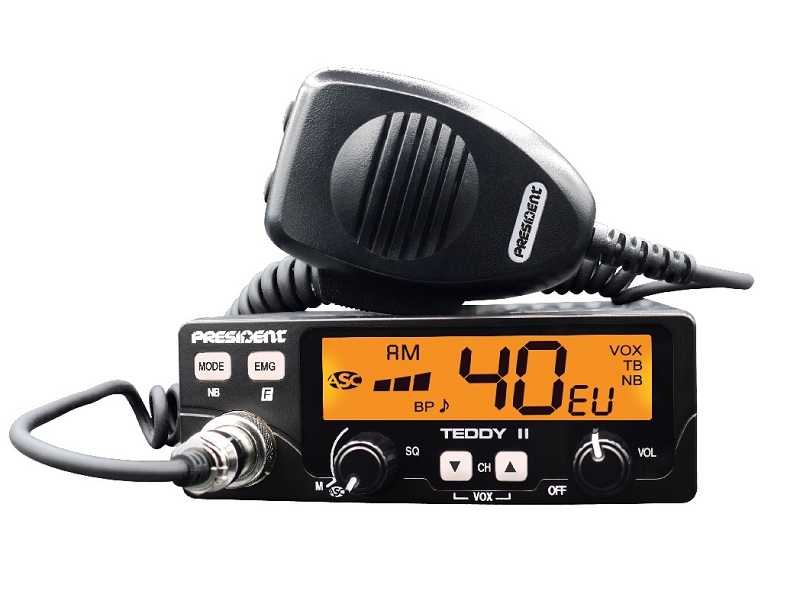

Radiostanice CB President Teddy II ASC

Technická specifikace:
Počet kanálů : 40
Modulace                : AM / FM
Frekvenční rozsah : from 26.965 MHz to 27.405 MHz
Ipedance antény     : 50 ohms
Napájení   : 12 V
Rozměr     : 125 (W) x 151 (D) x 45 (H)
Hmotnost                : 0.9 kg
Accessories supplied : Ultra light electret microphone with support
mounting cradle
screws
Filter : ANL (Automatic Noise Limiter) built-in
Transmission
Frequency allowance : +/- 200 Hz
Carrier power : 4 W AM / 4 W FM
Transmission interference : inferior to 4 nW (- 54 dBm)
Audio response : 300 Hz to 3 KHz
Emitted power in the adj. channel : inferior to 20 µW
Microphone sensitivity : 7 mV
Drain : 1,7 A (with modulation)
Modulated signal distortion : 2 %
Reception
Maxi. sensitivity at 20 dB sinad : 0.5 µV - 113 dBm AM / 0.35 µV - 116 dBm FM
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : 60 dB
Maximum audio power : 2.5 W
Squelch sensitivity : minimum 0.2 µV - 120 dBm / maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 160 ~ 420 mA
